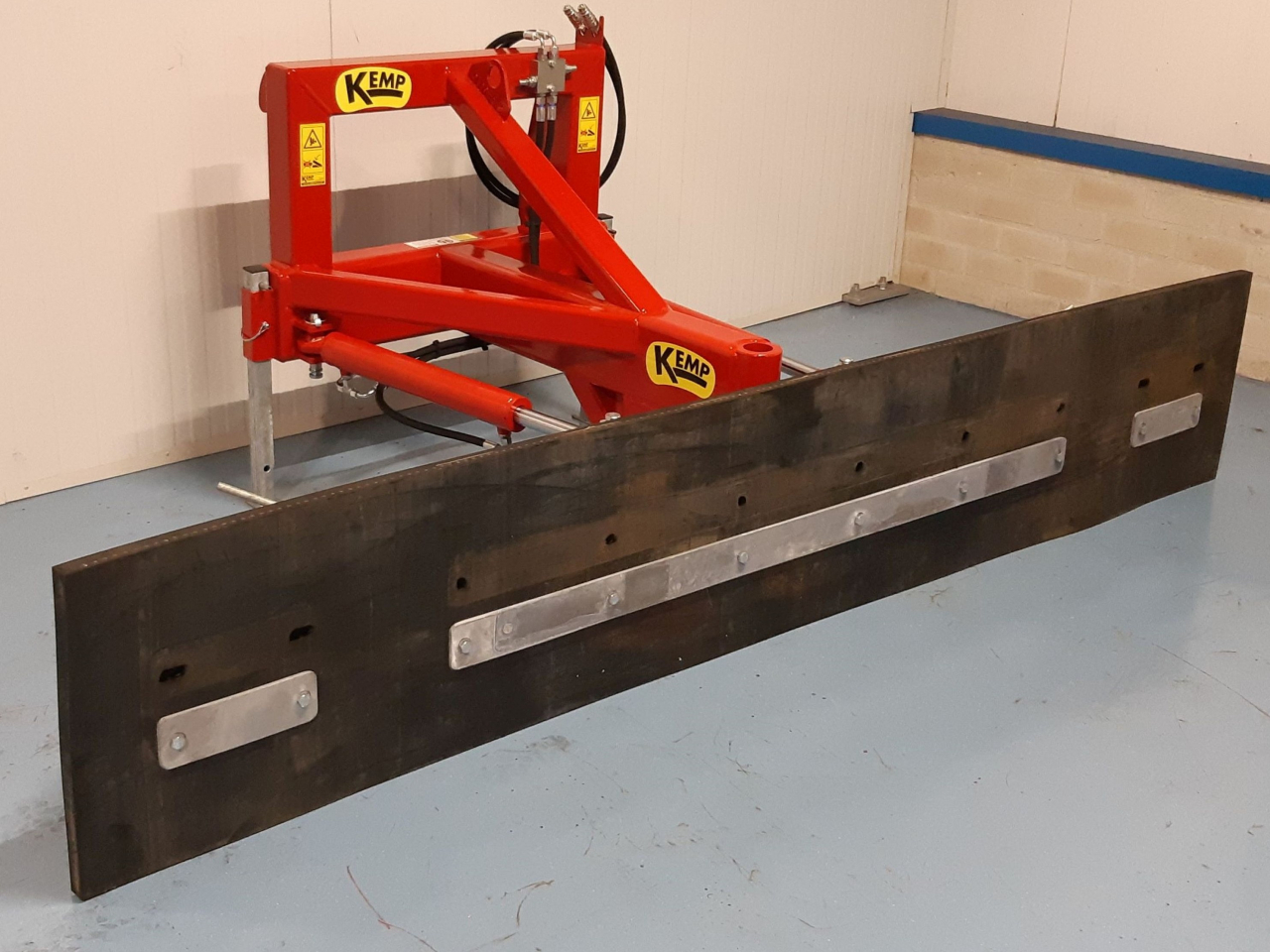

Hydraulically yard scraper heavy (TenWXL)

The Kemp Yard scrapers are suitable as mud scraper, manure scraper, dirt scraper, snow blade, etc. The rubber is equipped with a steel layer, which makes the rubber more wear-resistant, however, the slide is therefore not suitable as a feed scraper due to this steel layer.

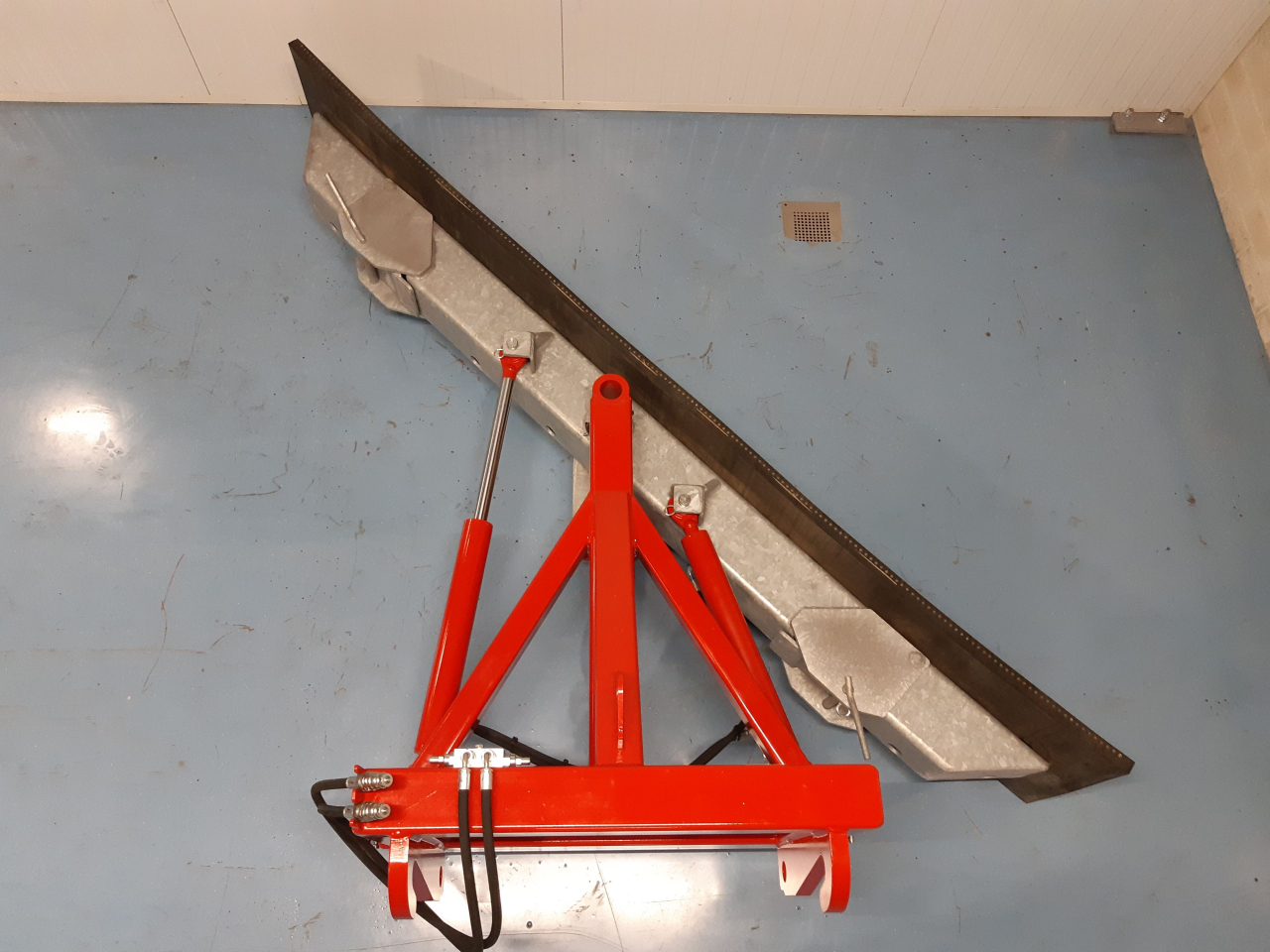

The Yard scrapers are able to swivel both 45 degrees left and right, so there is a good control on the removal of the dirt. Because two cylinders are used, it is also possible to swivel during sliding.

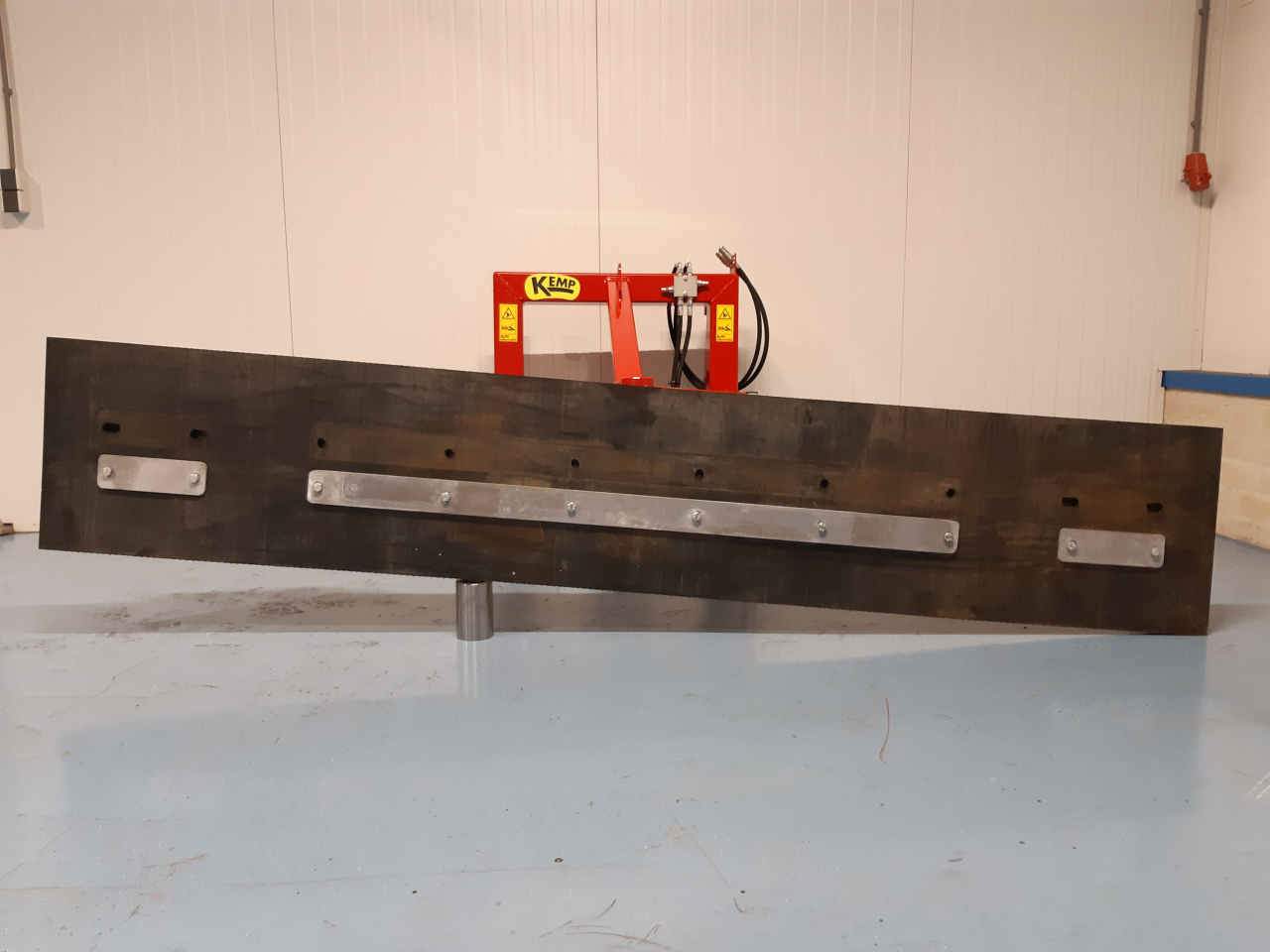

The beam with the rubber of the scraper can oscillate with respect to the frame, so there is always an optimal bottom adjustment and the rubber wears evenly.

Description

The TenWXL is the heaviest Yard scraper available at Kemp Machines. The terrain scraper has many similarities with the TenW200 series, except for the fact that most parts are heavier. For example, the TenW200 uses a UNP bar and the TenWXL a hollow steel section. This galvanized box beam is firmer than the UNP beam. In addition to the bar, the cylinders and the frame are also heavier.

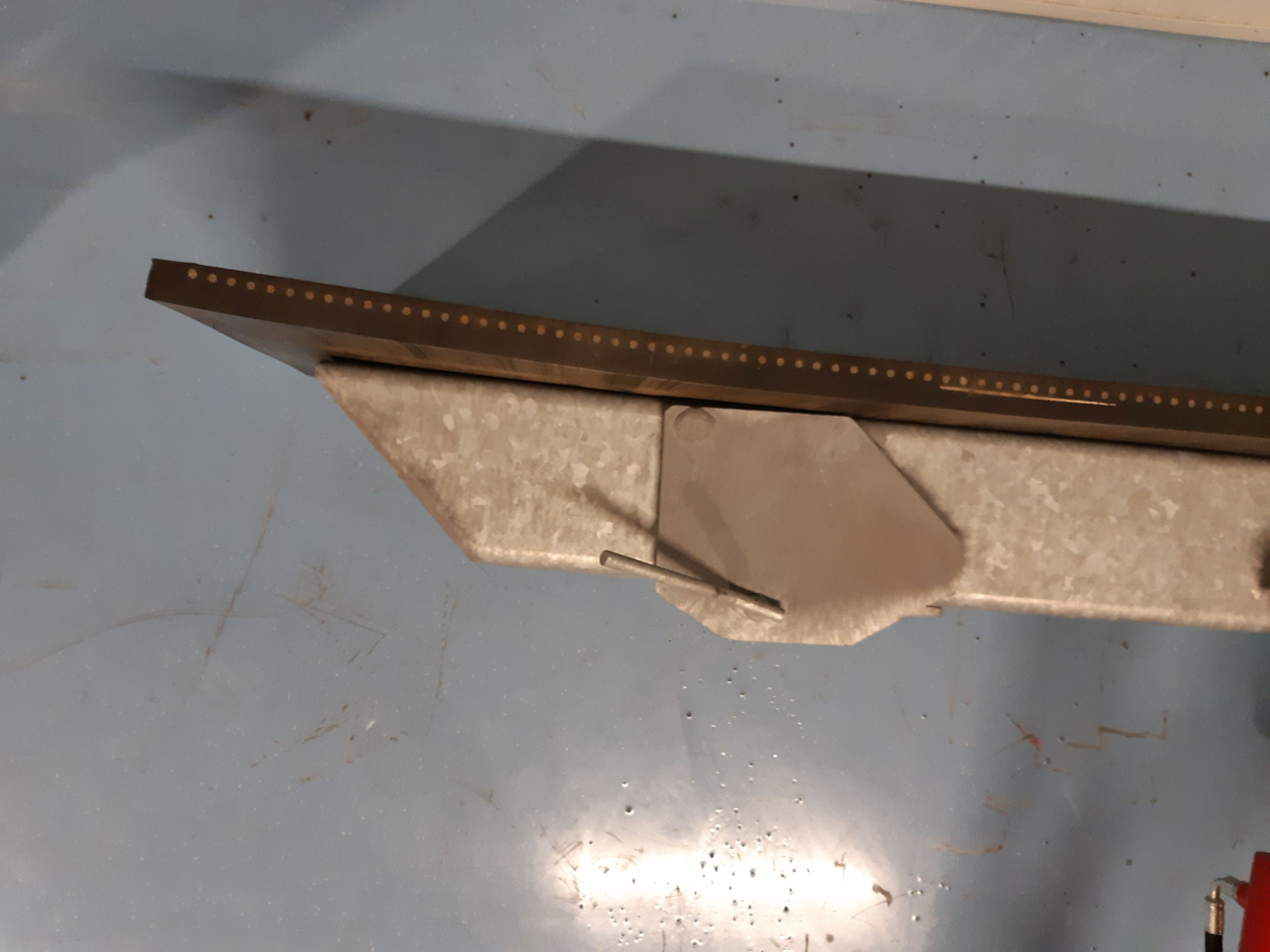

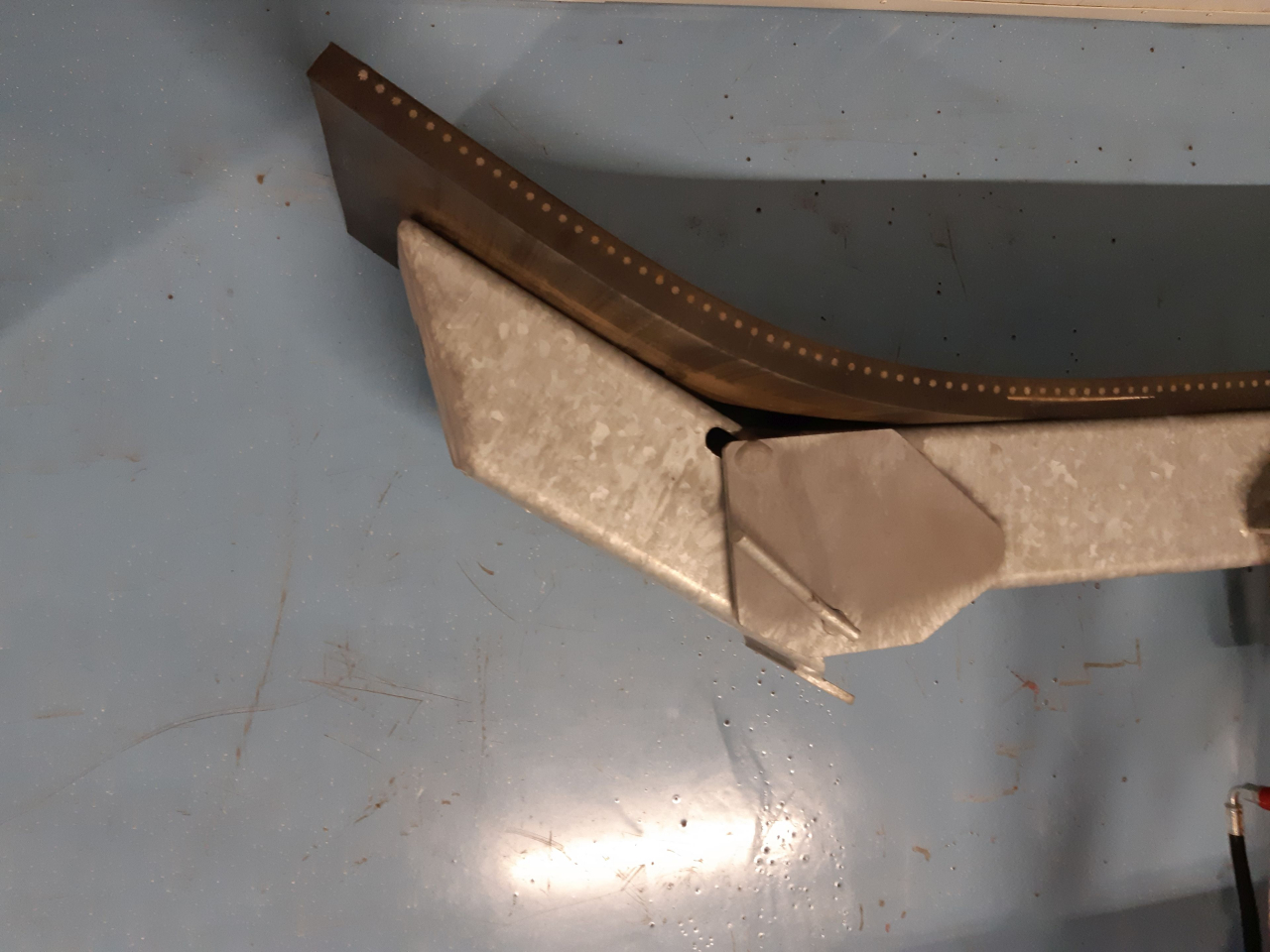

The TenWXL is available in the sizes 2,700, 3,000 and 3,200 mm and is standard equipped with a beam incl. adjustable angles. The 2,700 mm variant is also available with a straight beam, which is cheaper than the adjustable angles. The adjustable angles are just like the beam made of a box girder. The rubber of the TenWXL is 500 mm high. In this high rubber two rows of holes are drilled, allowing you to turn the rubber around and lower it. The rubber can therefore be mounted in four different positions.

The heavy Yard scraper is available with the attachments that belong to your vehicle (for the attachment parts, see the document: Kemp attachment parts).

For additional specifications, see the document: product specifications.

Options:

Shock valve: It is recommended to mount a shock valve, due to the fact that the scraper weighs about 600 kg. The shock valve provides protection when the scraper collides with something. In this case, the shock valve ensures that the oil from the cylinder, which has come under pressure, is moved to the other cylinder. As a result, the scraper swings past the obstacle and the chance of damage is reduced.

Snow cover: The TenWK is very suitable as a snow blade, but to control the snow that spatters over the rubber you can choose for a detachable snow cover.

Pilot operating non return valve: Needed at open centre and internal leakage control valve. Duo to the open centre, the oil can’t be blocked and the scraper can’t stay in one position. The pilot operating non return valve, takes over this function by blocking the oil flow, allowing the scraper to stay in one position.
