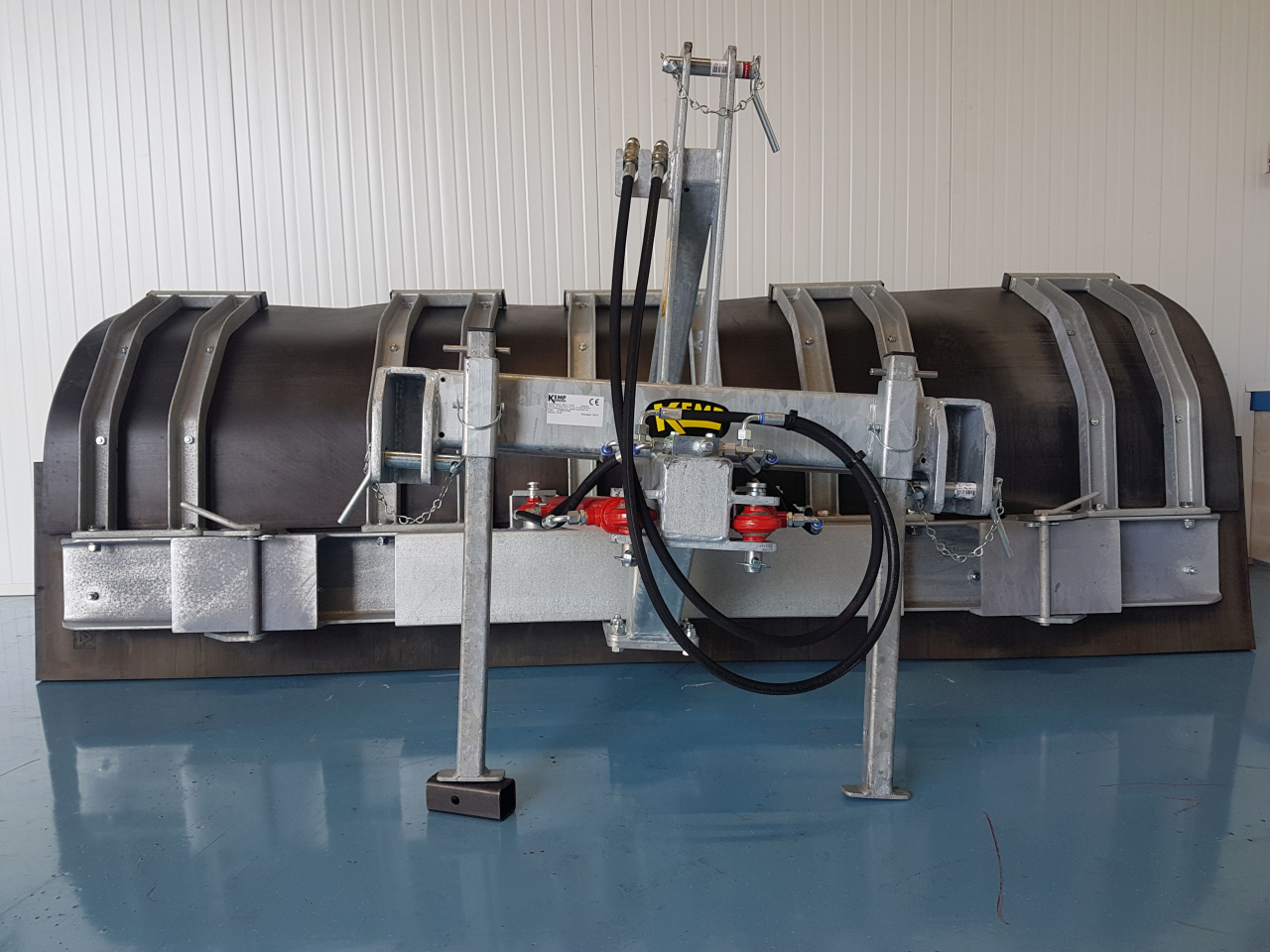

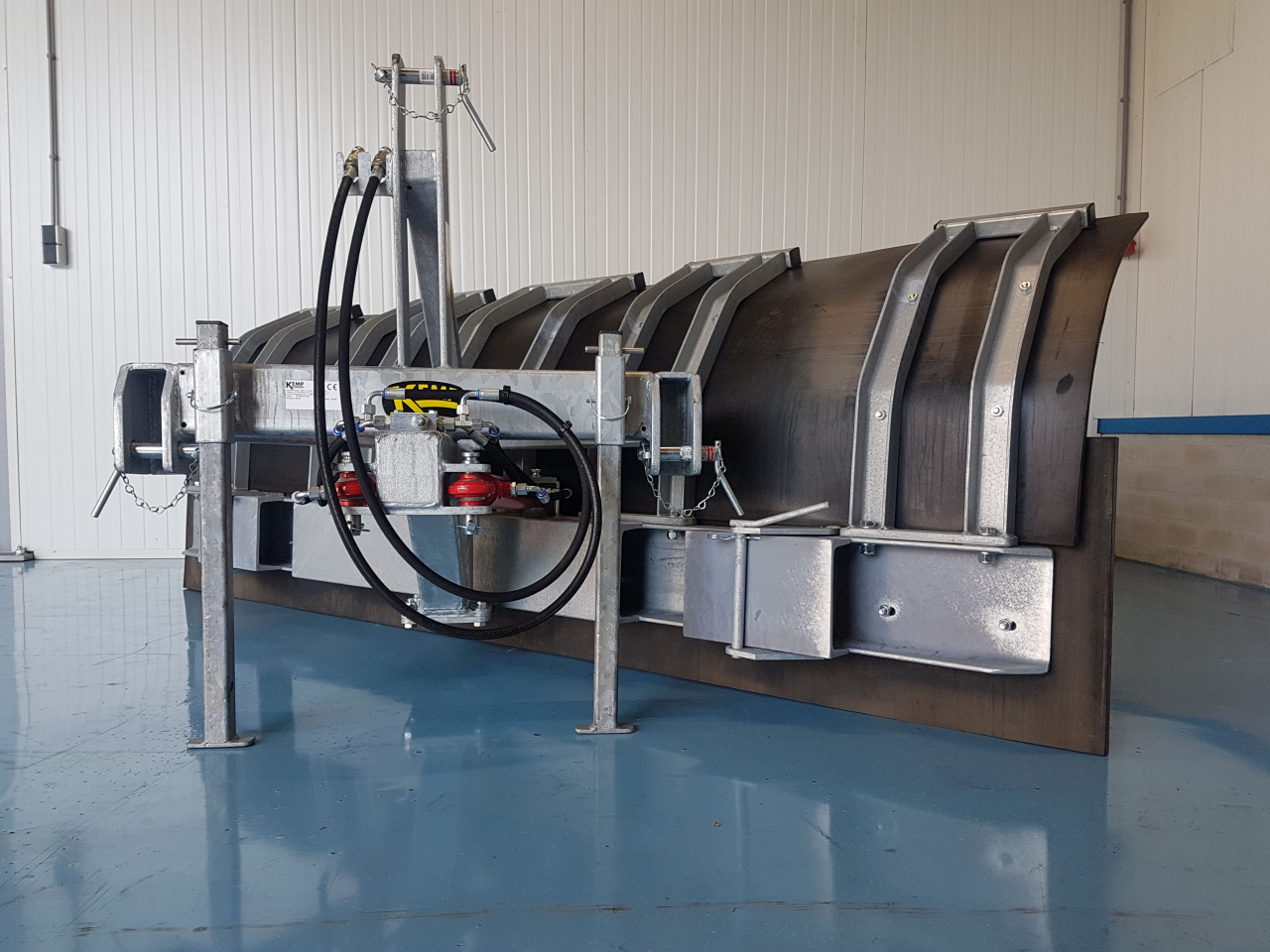

Hydraulically yard scraper short version (TenWK)

The Kemp Yard scrapers are suitable as mud scraper, manure scraper, dirt scraper, snow blade, etc. The rubber is equipped with a steel layer, which makes the rubber more wear-resistant, however, the slide is therefore not suitable as a feed scraper due to this steel layer.

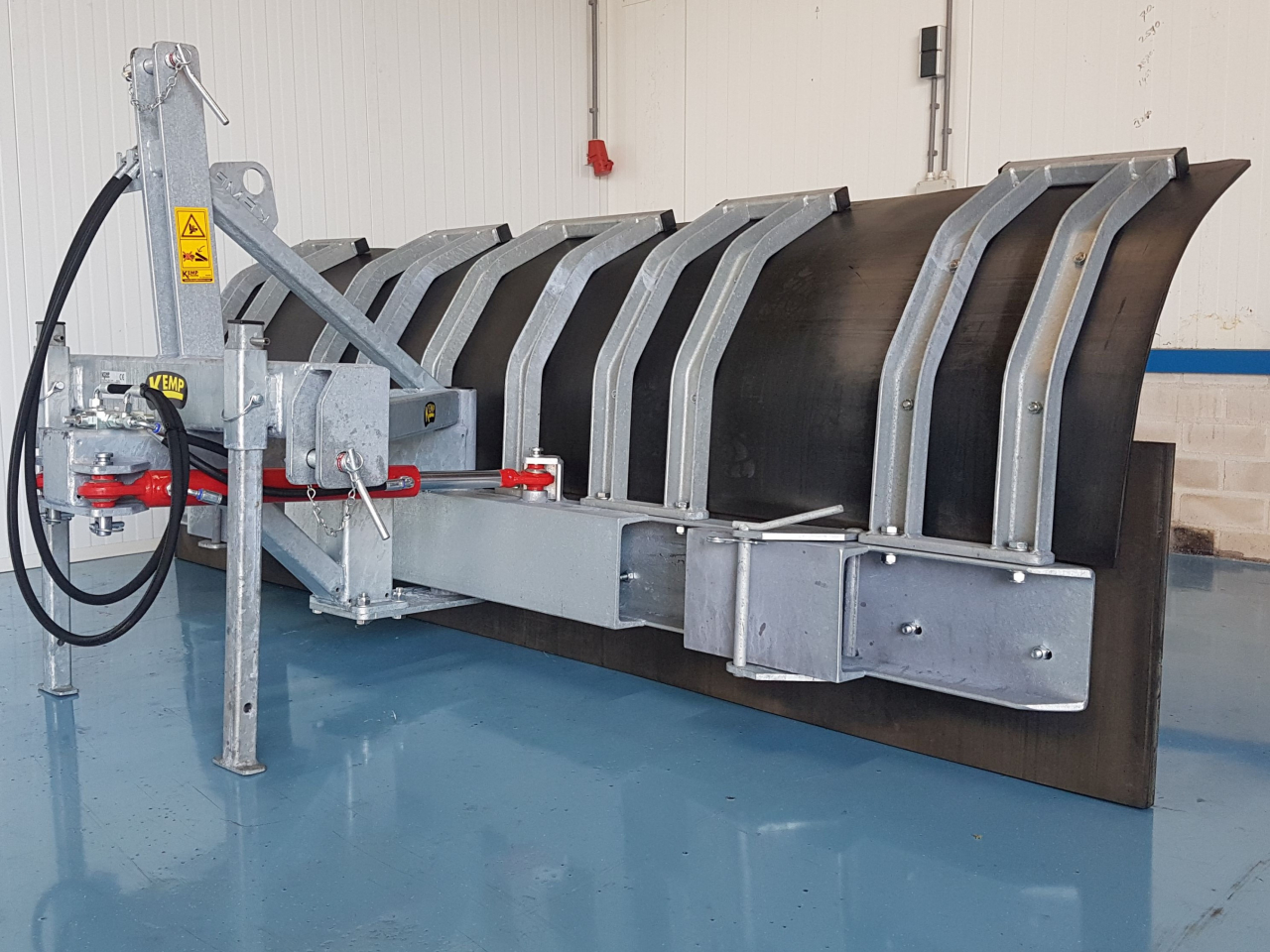

The Yard scrapers are able to swivel both 45 degrees left and right, so there is a good control on the removal of the dirt. Because two cylinders are used, it is also possible to swivel during sliding.

The beam with the rubber of the scraper can oscillate with respect to the frame, so there is always an optimal bottom adjustment and the rubber wears evenly.

Description

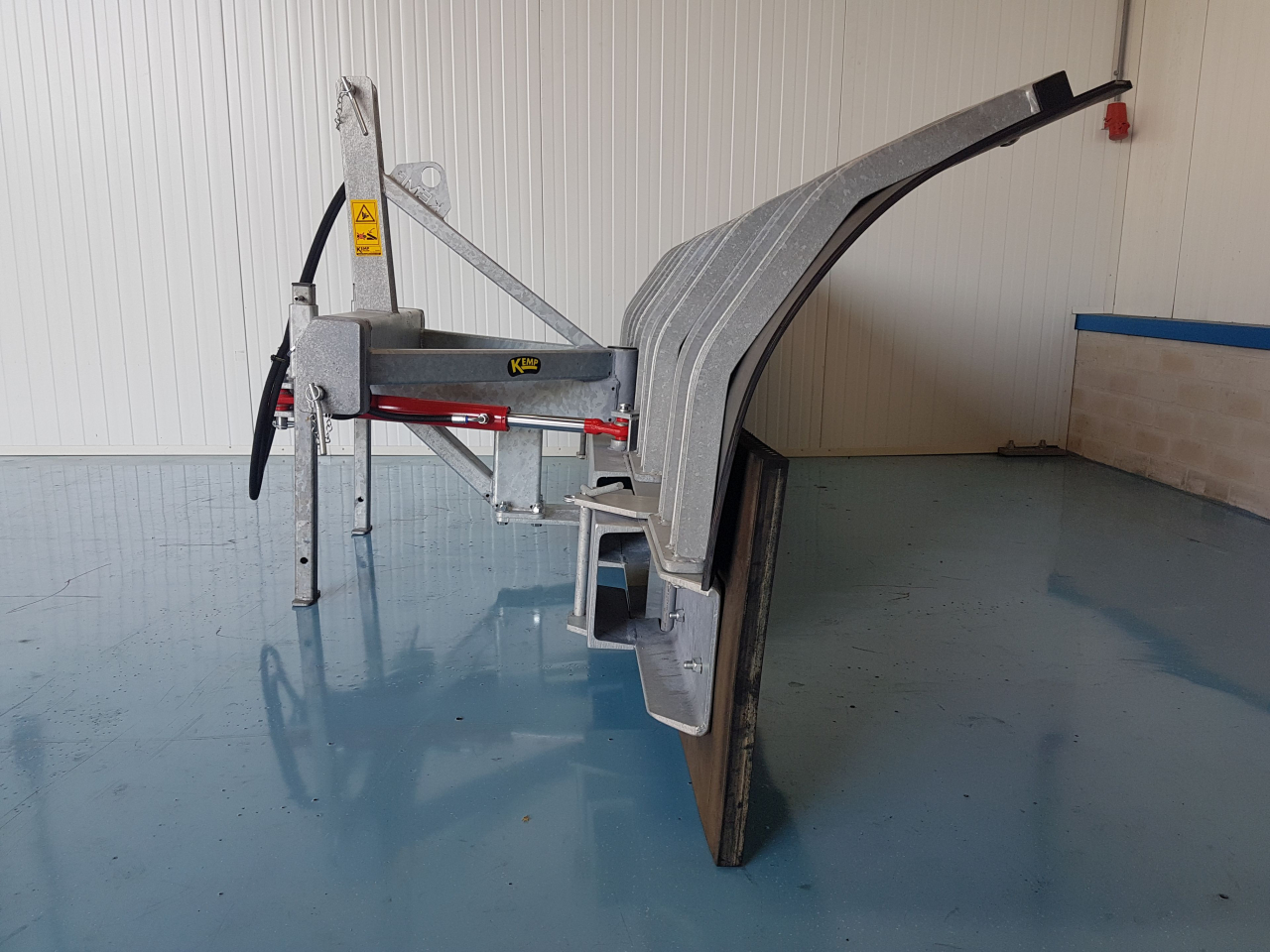

The abbreviation TenWK stands for Yard scraper short version. This short version is directly the big difference with the normal TenW series. The distance from the front of the rubber to the centre of the lifting ball (3-point) is 750 mm. This is 400 mm shorter than the regular TenW.

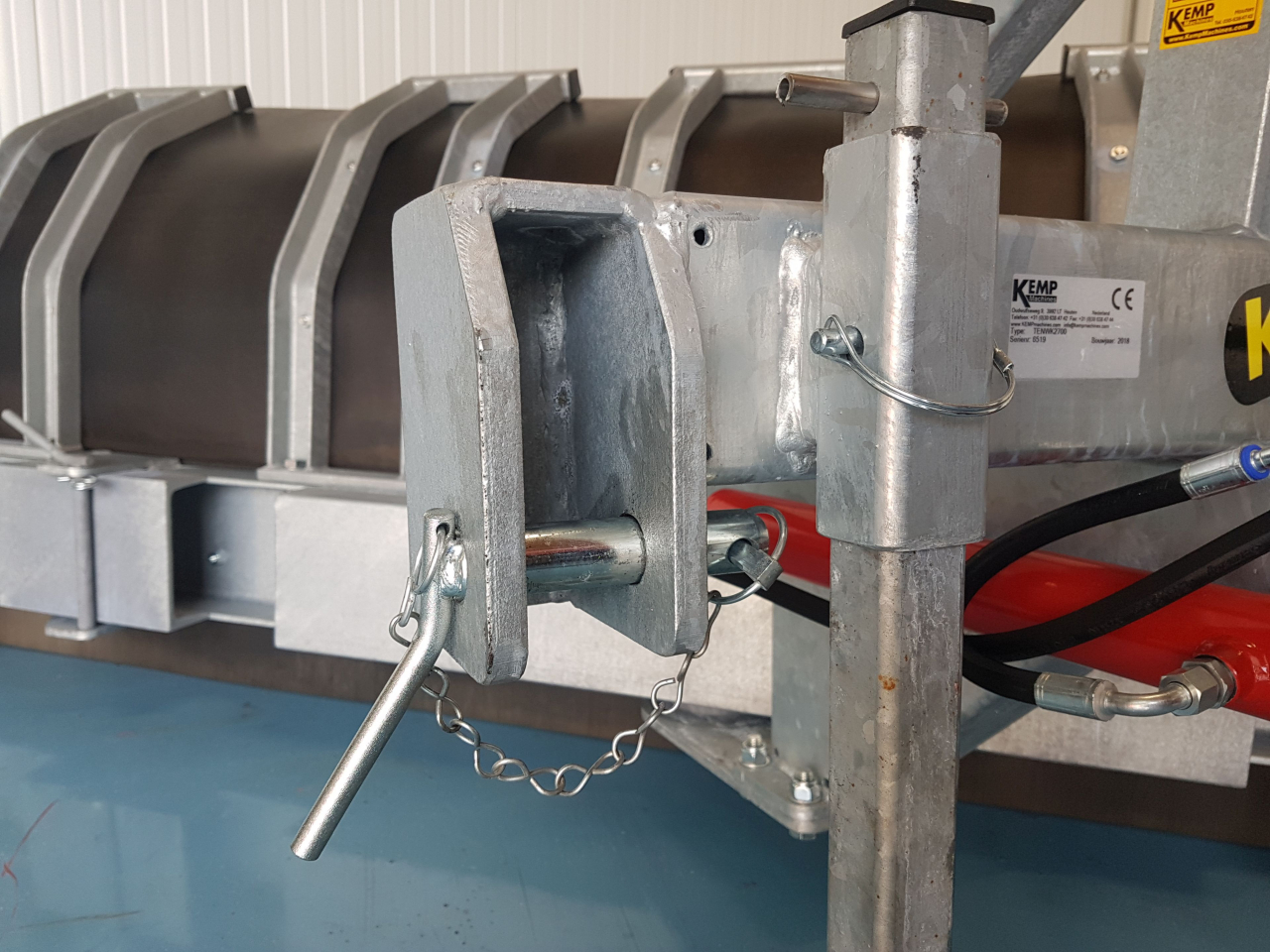

The TenWK is only available with 3-point mounting parts (front lift) and in the sizes 2,700, 3,000 and 3,200 mm. The TenWK is standard equipped with a beam incl. adjustable angles. The 2,700 mm variant is also available with a straight beam, which is cheaper than adjustable angles. The rubber of the TenWK is 500 mm high. In this high rubber two rows of holes are drilled, allowing you to turn the rubber around and lower it. The rubber can therefore be mounted in four different positions.

The frame of the TenWK is treated with a high-quality 2-component anti-corrosion primer, and finished with a 2 component polyurethane high-gloss coating. The UNP beam, on which the rubber is mounted, is galvanized.

For additional specifications, see the document: product specifications.

Options:

Shock valve: A shock valve is needed with vehicles above 4,000 kg. The shock valve provides protection when the scraper collides with something. In this case, the shock valve ensures that the oil from the cylinder, which has come under pressure, is moved to the other cylinder. As a result, the scraper swings past the obstacle and the chance of damage is reduced.

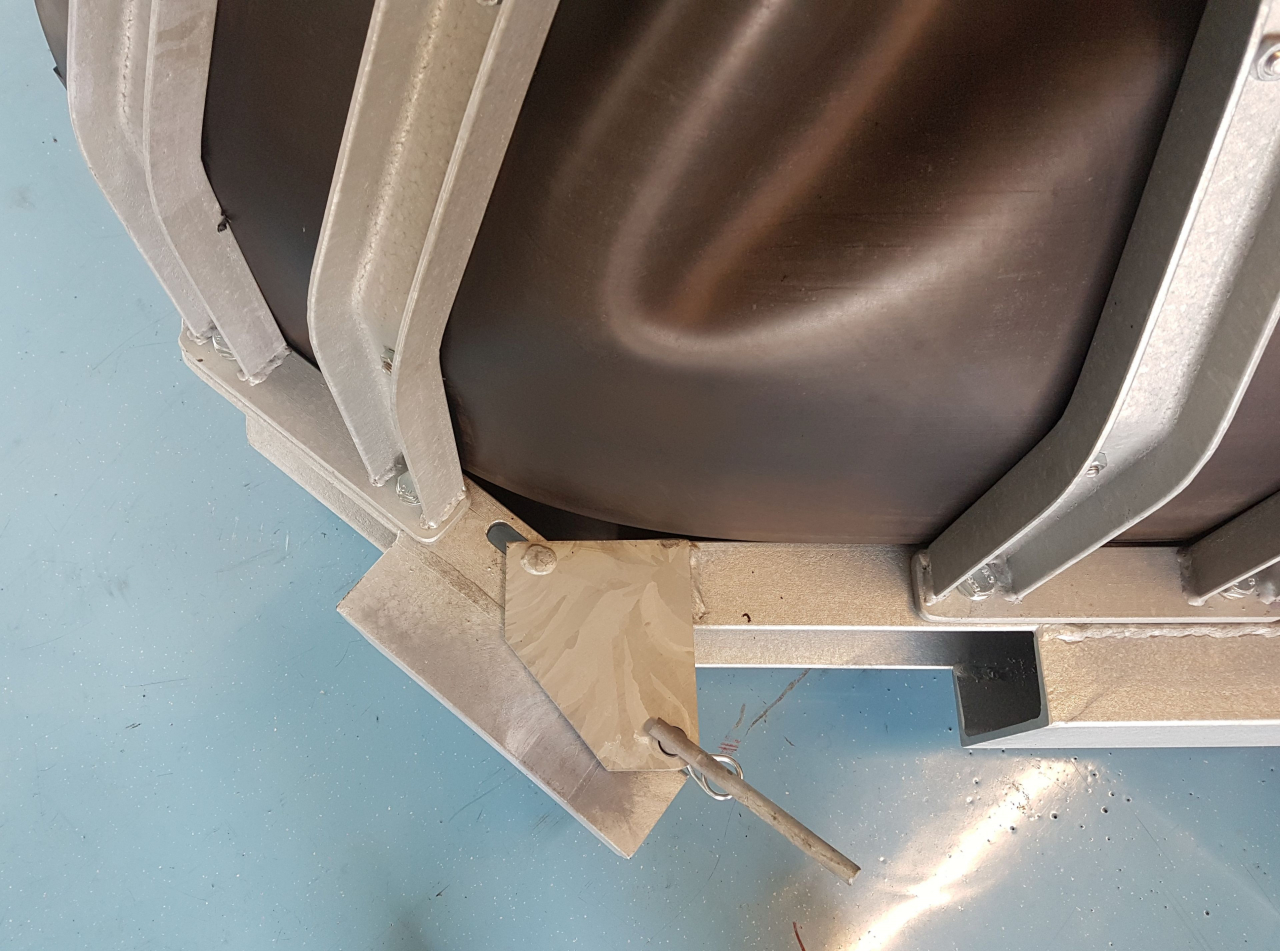

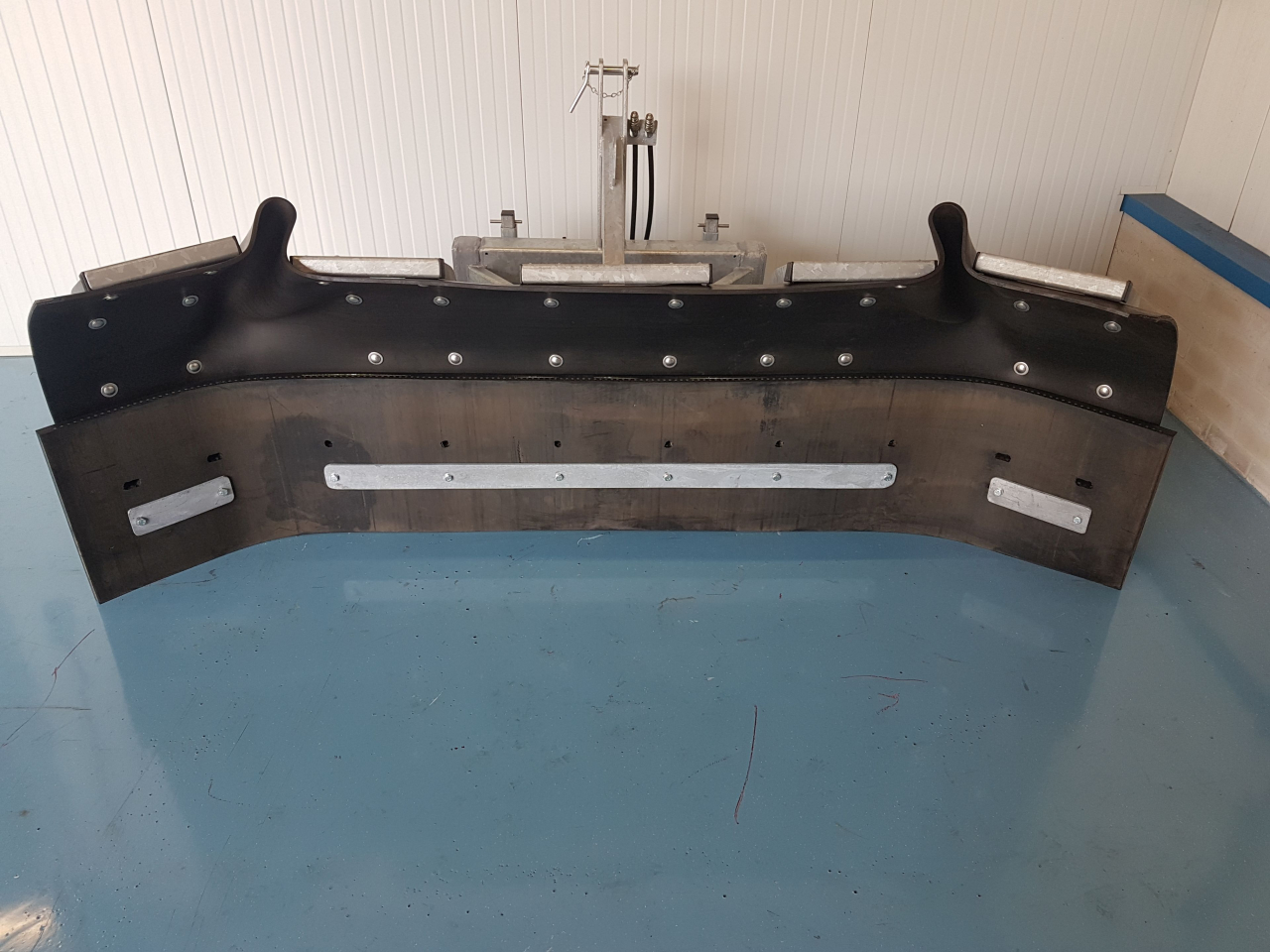

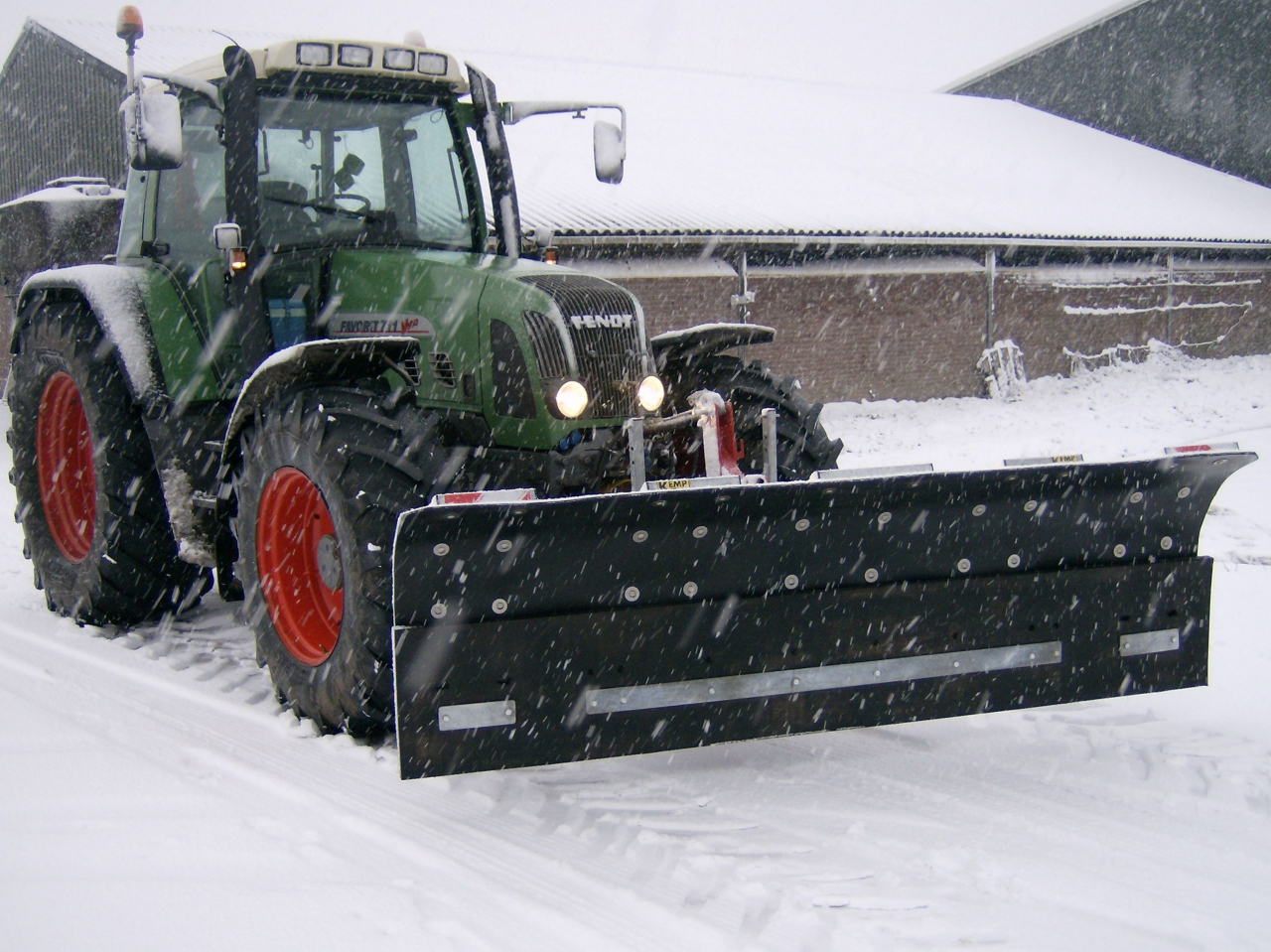

Snow cover: The TenWK is very suitable as a snow blade, but to control the snow that spatters over the rubber you can choose for a detachable snow cover.

Completely galvanized: The frame of the TenWK is varnished and the UNP beam is galvanized. However, it is also possible to order the gate completely galvanized. As a result, the slide is no longer sensitive to weather influences, so that the rubber can be worn down to the frame.

Pilot operating non return valve: Needed at open centre and internal leakage control valve. Duo to the open centre, the oil can’t be blocked and the scraper can’t stay in one position. The pilot operating non return valve, takes over this function by blocking the oil flow, allowing the scraper to stay in one position.
