Fixed feed scraper V-shape (RVSV)

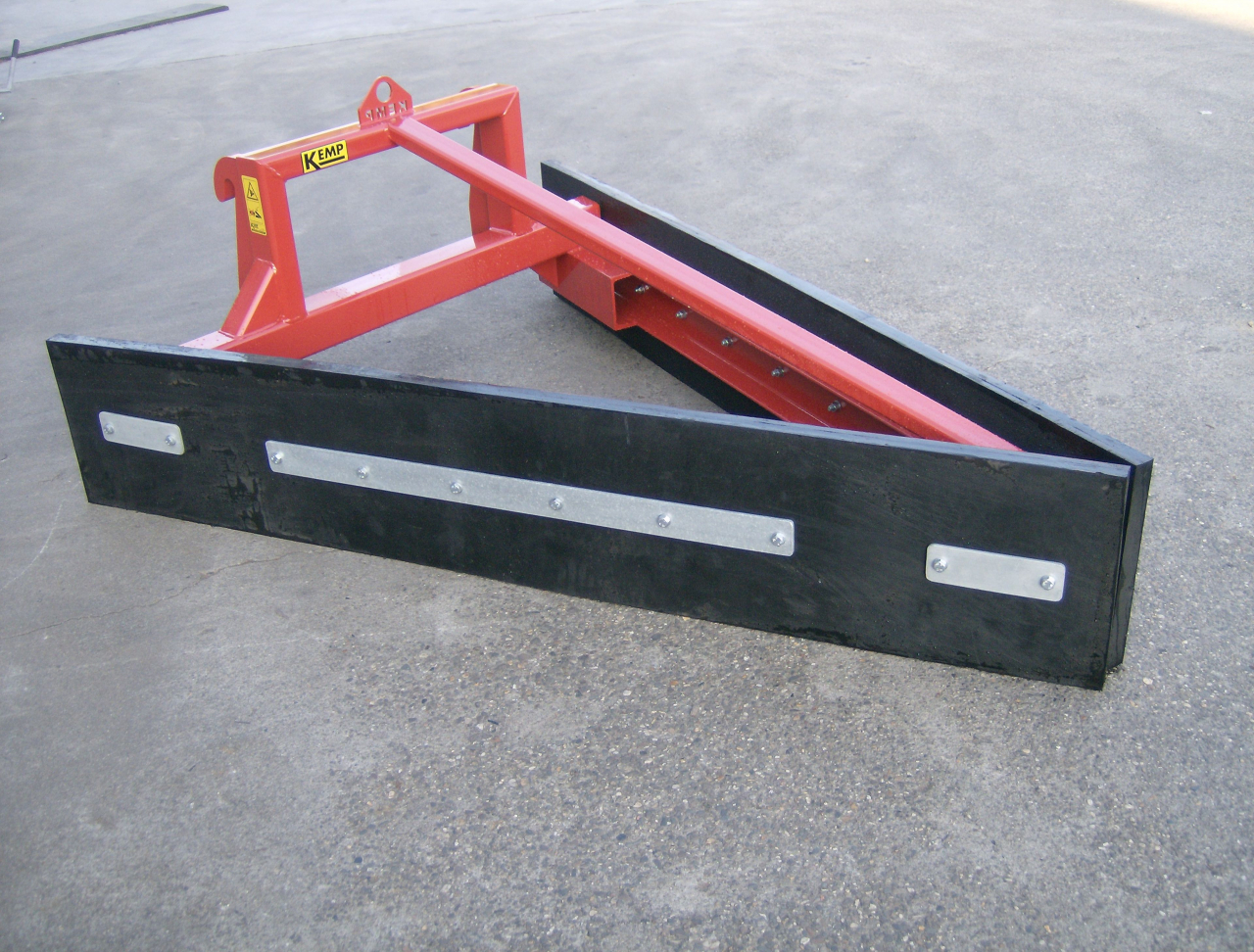

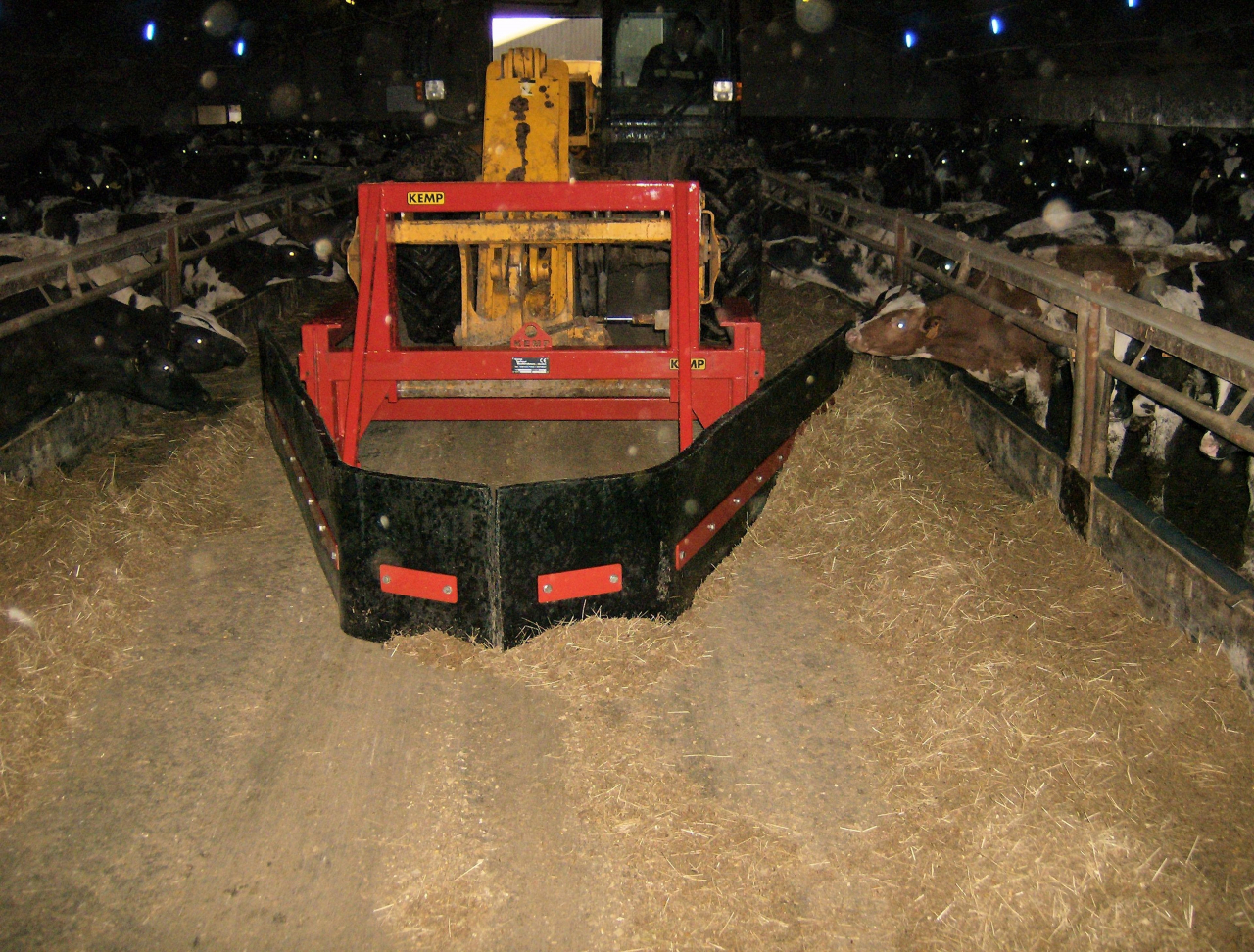

The RVSV is a strong and stable rubber scraper, which can be used to push quickly and frequently. The feed slide is available with attachments or bucket connection. The RVSV is a rubber scraper in a V-shape; two U-beams are welded together in 70 degrees. Due to this large tilt, the feed can be properly transported towards the cows and it will not start to accumulate.

Description

The RVSV is available in five sizes. This measure is at the point where the two rubber strips are furthest apart. The sizes are 1,600, 1,800, 2,000, 2,400 and 2,800 mm. The choice of one of the sizes depends on the width of your vehicle, because the rubber comes next to the vehicle. The vehicle must therefore be narrower than the width of the gate, our advice is at least 400 mm narrower.

Options:

Steel angle to clamp with top clamp of the bucket.

Adjustable hollow sections for clamping the scraper to buckets with cutting knife, without damaging this knife.
